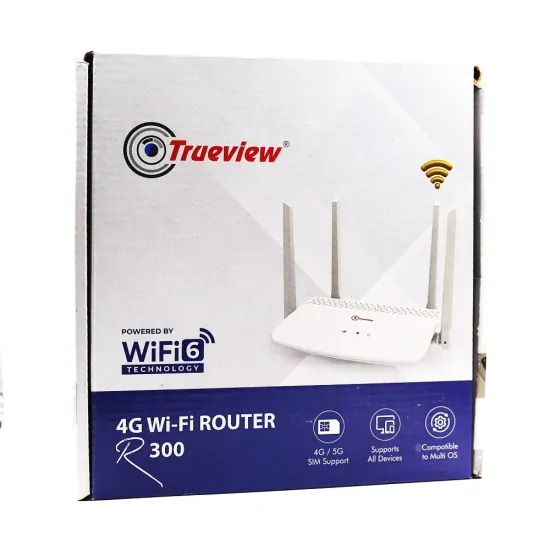

TRUEVIEW 4G SIM ROUTER WITH 4 ANTENNA 1 LAN

Plug & Play, plug in any 5G/4G SIM card into the router, and connect
any of the network devices. Like Phone/PC/CCTV Devices etc.
• Internal Antenna for long range & high speed.
• Wi-Fi + LAN port connection.
• Web UI to configure device security & device management.
• Supports Windows / Android / Linux / iOS operating syste

Technical Specications
FDD LTE : B1/B3/B5/B8
TDD LTE : B40
1.4 / 3 / 5 / 10 / 15 / 20 MHz (3GPP compliant)
DL : QPSK / 16QAM / 64QAM, comply with 3GPP
UL : QPSK / 16QAM, comply with 3GPP
2 × External LTE Antennas
LTE : Power Class 3 (23 dBm ± 2.7/-3.7dB)
UMTS : Power Class 3 (24 dBm ± 1.7/-3.7dB)
4G : LTE Cat4,
FDD : DL/UL up to 150 Mbps / 50 Mbps
TDD : DL/UL up to 110 Mbps / 10 Mbps
2.4 GHz (Channels 1–13)
17±2 dBm @ 802.11b
15±2 dBm @ 802.11g
13±2 dBm @ 802.11n
12±2 dBm @ 802.11ax
802.11 b / g / n / ax
802.11b : 11 Mbps
802.11g : 54 Mbps
802.11n : 150 Mbps
802.11ax : 286.8 Mbps
Compatible
to Multi OS
Wi-Fi6
Technology
4G / 5G
SIM Support
Supports
All Devices
High
Speed
Multi
 Antenna
Plug &
Play
* Note: Product specications are subject to change without prior notice.
Antenna
LTE WAN & Mobile Features
WAN/LAN
USIM
System Management
Language
Mobile Services
Router Features
Hardware Specications
Dimensions
Net Weight
Operating Temperature
Storage Temperature
Power Adapter
Power Consumption
Interfaces
Indicators
Buttons
Operating System Compatibility
Windows
MacOS
Android
Linux
Browsers
1 × External Wi-Fi Antenna
1 × RJ45 (10/100 Mbps)
Single, Standard SIM slot (4FF)
Status, Statistics, Device Management
English
SMS Manager
Auto-APN According to USIM
USSD Support
PIN/PUK Management
Auto Data Connection
SSID & APN Management
IPv4/IPv6
DHCP, Static, Dynamic IP Support
Access Control, Local Management
Security : WPA2 (AES) - PSK, WPA / WPA2 - PSK
Firewall, Port Filtering / Forwarding
190 × 133 × 143 mm (L×W×H)
140 g
-20°C to +45°C
-20°C to +60°C
DC 12V, 1A
≤12W
1 × RJ45 (10/100 Mbps), 1 × USIM, Wi-Fi
Power, Wi-Fi, LTE
Reset, WPS
7 / 8 / 10 / XP
10.10+
10 / 11
Ubuntu 15.04+
Edge, Fire fox, Chrome, Safari, Opera
